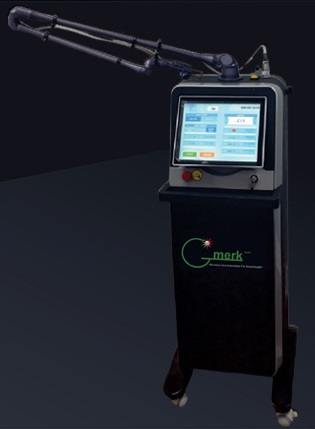

High Technology surgical CO2 laser with fast true energy and high peak power and very stable power represents modern surgical co2 laser technology intended for no bleeding, no pain, no Dressing , char free surgery, reduced surgical time, minimal discomfort, faster healing etc.
Contact usAt Gmerk Our Main motive is the Quality in what we deliver. Thus you can be assured about our High Tech Products and services and without having to worry about the cost as our Equipments are pocket Friendly as well. Please get in touch to know about our Products and fell free for any queries. We would be more than happy to serve you.
+91 1800-103-0235
info@gmerk.com
ENT Applications: Snoring, allergic rhinitis, nose bleeding control, ear keratosis, vocal cord polyp, chronic pharyngitis, hypertrophy of tonsil, Vaporization of sub glottis stenosis, excision and ablation of oral, glossal, pharyngeal and laryngeal lesions, stapedotomy, partial turbinectomy, laryngo- carcinoma, ablation of papilloma, leukoplakia, excision of granuloma, gular haemangioma, excision of benign tumour, auricle vegetation, nose tumour and tumour of paranasal sinus, epulis, buccal haemangioma, mucous cyst, lichen planum Laser advantage is small injury, short hospital stay , clear operation vision , easy to operate and safe, laser energy reach difficult area for operation, high precision, healing faster, short operation time, no touch area.
Features : Simple to use : fixed with all connective parameter fixed with main machine immediately after key switch is turned on, Laser is prepared to use initial auto setting of the laser parameters used last. user needs to set his procedure required set as laser parameter operating mode, power , emission mode exposure time.
Safety control : Top of the machine Red collared button indicates emergency stop switch , Busser, key on/off switch , standby/ ready – work switch fuses , warning label etc
Optional Accessory : As per each surgical requirement with specific and special hand pieces , tips waveguides, Micromanipulator available these are all optional special hand piece
| Laser Type | (Sealed -off )CO2 laser Tube |
| Mode Structure | TEM00 |
| Wavelength | 10.6microns (un)(10600nm) |
| Power to Tissue | 0.5-15W | 0.5-20W | 0.5-25W | 0.5-30W | 0.5-40W |
| Laser Operation mode | CW, Pulse, Super pulse, Ultra Pulse |
| Tissue exposure modes | Continuous, Single Pulse , Repeat pulse , (Super Pulse / Ultra pulse optional) |
| Repeat time | 100W | 200w | 250W | 300W | 400W |
| P / UP peak power | 200um,400um,600um,800um,1000um |
| Control Panel | With control switches , LCD touch screen display etc, True colour |
| Aiming beam | 2mw 650nm red diode pilot beam |
| Aiming beam bright | Brightness adjustable |
| Delivery System | |
| Surgical Arm | 7 – joint spring – balanced articulated surgical arm (standard device) |
| Surgical attachment | Hand piece holder, purge air tubing |
| Hand Piece 50mm | Focal length 50mm hand piece (sharp cutting ) |
| Hand Piece 100mm | Focal length 100mm hand piece (normal use) |
| Woking radius | 110cm to 135cm |
| Cooling System | Closed loop Liquid |
| Control | IC Microprocessor controlled |
| Purge air | By air pump |
| Warranty | One Year |
| Shell | Heat and ”MChe “liquidproof fiber material combination colour as medical standard |
| Safety glass | Class I Ty e B |
| Electrical Input | 110VAC/60HZ or 220VAC/50HZ +- 10% 5A single phase |
| Laser Glass | IV |
