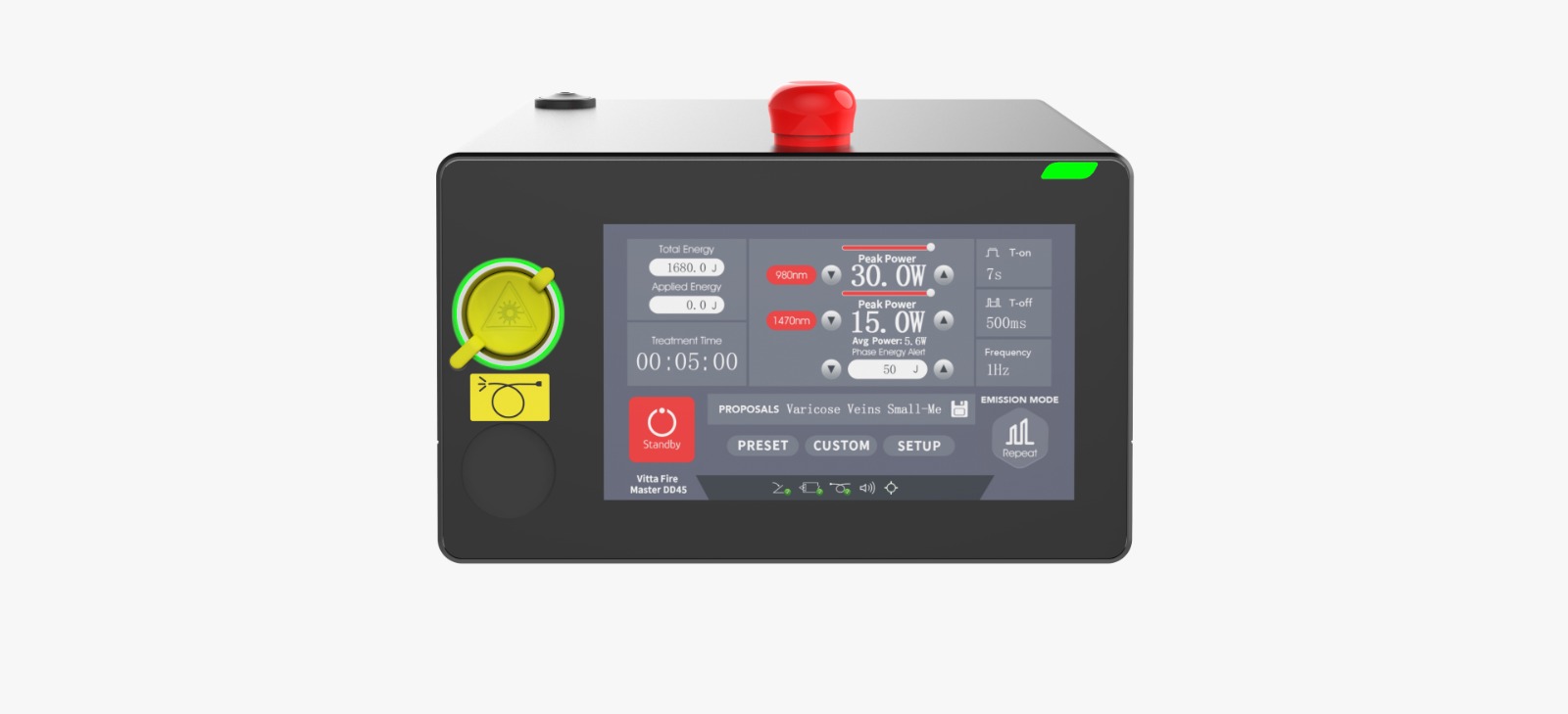

Vita Maxim DS15

Affordable 15W with Full Metal High Quality Housing.

Contact us
Download Brochure

Contact Us for Enquiry

At Gmerk Our Main motive is the Quality in what we deliver. Thus you can be assured about our High Tech Products and services and without having to worry about the cost as our Equipments are pocket Friendly as well. Please get in touch to know about our Products and fell free for any queries. We would be more than happy to serve you.


Send us a message
Vita Maxim DS15

Applications:
- General Surgery.
- Dental.
- Oral Surgery.
- Otalaryngology(ENT)
- Urology.
- Gynecology.
- Dermatology.
- Cosmetology.
- Ano Rectal Surgery.
- Ophthalmology
- Neurosurgery.
- Gastroenterology.
- Orthopedic.
- Pulmonary/Thoracic.
- Podiatry
- Vascular Treatement.

Some of the Key Features

Features :
High Quality Material : vitta Maxim DS 15 hos an aluminum alloy housing that provides high strength, high thermal conductivity, high shielding and high coma¬ston resistance to protect it from domage, The texture of the materi¬al and color also brings aesthetically pleasing. And the high quality and reliability ensure users focus on the treatment with safety.

Portable Design :
The whole unit is compact with modular design. The smallest-size laser 230 (W)-180(1)135(-1) compared to lasers of the some power level. Direct power supply without need of adaptor, the whole unit is easy to carry.

Color Touch Screen with Intuitive Interface :
7-inches pure flat tempered glass colour screen with high resolution 1024'6001A. The extra-large viewing area provides a smooth, quick and effortless touch experience. The intuitive operation system with different power level, three operating modes (cw single pulse, repeat pulse) and timer selec tions allow users to use, adjust and save protocols easily. The screen brightness can be customized and adjusted for each operating environment.

Plug-in Type Fiber Port :
Front access ports, convenient for replacing different handpieces, to meet different clinic.

Technical Specifications

Laser Type Gallium-Aluminium-ArsenideDiode, Semiconductor
Wavelength 980nm | 1470nm | 980nm + 1470nm
Maximum Power 15W | 15WW | 15W + 30W
Operation Mode CW, Single or Repeat Pulse
Pulse Duration 10us - 3s
Repetition Rate 0.2Hz - 50KHz
Pilot Beam Red Diode Laser of 650nm, Power < 5mW
Control Mode True Color Touch Screen (7 inches, resolution 1920x600px)
Transmission System Medical Fibers with SMA 905 Connector
Cooling System Internal , Air and Thermoelectric cooling
Controller Microprocessor
Output Fiber-optic Coupling
Dimensions 230(W) X 180(L) X '135(H) mm
Weight 3.0 Kg
